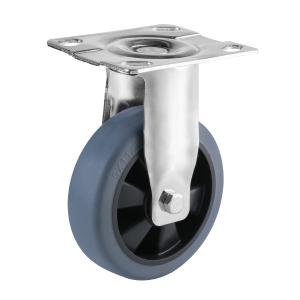

Medium / Heavy Duty Industrial Casters Wheels Thermoplastic Rubber TPR Caster

Brand Name : Dajin

Model Number : HTC-001

Certification : Rosh/CE/IOS

Place of Origin : China

MOQ : 500

Price : 4.79

Payment Terms : L/C,T/T

Delivery Time : 25

Packaging Details : 21X21X21 cm

Name : Heavy Duty Industrial Casters Wheels

Wheel Diameter : 75 mm / 100 mm / 125 mm/ 150 mm

Tread Width : 37 mm

Bearing : Double ball bearing

Load Height : 112mm / 139mm / 170mm / 193mm (by diameter)

Swivel Radius : 75mm / 85mm / 98mm / 115mm (by diameter)

Plate Size : 92 × 65 mm

Hole Spacing : 75.5 × 44.5 mm, 69.5 × 44.5 mm

Thread Size : M12 × 30 mm

Load Capacity : 110kg (75mm) / 130kg (100mm) / 160kg (125mm) / 180kg (150mm)

Installation : Top-plate mount

Wheel Material : Thermoplastic Rubber (TPR) tread + polypropylene core

Contact Now

Thermoplastic Rubber (TPR) Medium-Heavy Duty Casters

Features

1. High-Performance TPR Tread: 37mm wide thermoplastic rubber offers superior shock absorption and floor protection

2. Reinforced Load Capacity: Supports 110-180kg per caster (varies by wheel diameter) for medium-heavy applications

3. Premium Bearing System: Steel double ball bearings ensure smooth 360° rotation with minimal effort

4. Durable Construction: Combination of TPR tread and polypropylene core provides excellent wear resistance

5. Versatile Sizing: Available in 75/100/125/150mm diameters to match different equipment needs


Function

These medium-heavy duty casters deliver optimal performance for equipment mobility. The thermoplastic rubber tread cushions impacts while maintaining excellent rolling efficiency. The double ball bearing system provides reliable rotation even under maximum load, making them ideal for frequent transport applications.

Application

1.Industrial Workstations: Mobile assembly benches and tool carts

2.Hospital Equipment: Medication carts, mobile workstations

3.Retail Displays: Heavy product showcases and promotional stands

4.Food Service: Buffet carts and kitchen equipment

5.Warehouse Utility: Medium-duty platform trucks and service carts



Technical Parameters


item
value
Model Name
 Thermoplastic Rubber (TPR) Medium-Heavy Duty Casters
Tread Thermoplastic Rubber
Center
Polypropylene
Type
Plate Casters, Stem Casters, Bolt-Hole Casters, Side-Mount Casters
Style
Rigid, SWIVEL, Swivel & Rigid
Customized support
OEM, ODM, OBM
Place of Origin
China
Wheel Diameter 75mm / 100mm / 125mm / 150mm
Bearing
double ball bearing
Thread Size M12 × 30 mm
Load Capacity
 110kg (75mm) / 130kg (100mm) / 160kg (125mm) / 180kg (150mm)
Load Height
112mm / 139mm / 170mm / 193mm (by diameter)


Product

Medium / Heavy Duty Industrial Casters Wheels Thermoplastic Rubber TPR Caster
